WEM3080T can be connected to our online energy monitoring system Iammeter (https://www.iammeter.com) by one-key setup. With that, you can easily track, monitor and analyze your energy consumption in your home, company or factory in real-time. If you have a solar PV system, this meter can also help track the entire energy flow of the system. The system tells how much energy your solar system is producing, how much excessive energy are exporting to the grid or how much your loads are consuming from grid or your solar system.

With open API, you can monitor the data locally via LAN or upload the data to your own server.

Key Features

1. Bi-directional: both forward energy (from-grid) and reverse energy (to-grid) in each phase of this 3 phase energy meter can be monitored simultaneously. This feature is especially useful in solar PV monitoring.
2. Split phase : this three-phase energy meter can be used as three single-phase energy meters.
3. Net energy metering: this 3 phase energy meter supports both normal metering mode and net energy metering mode.
4. Cloud service & APP: Provide IAMMETER-Cloud service which is a very powerful system in solar PV monitoring and energy consumption management.
5. Open source platform : This three phase energy meter can be easily integrated into nearly all famous platforms, such as Home Assistant,NodeRED, Openhab,Domoticz,IObroker.
6. Easy integration into the system of customer: this 3 phase energy meter can be configured to upload data directly to the customer`s own server(by HTTP, TLS,TCP or MQTT).
7. Support Modbus TCP/RTU: Modbus is common protocol that used in industrial system such as ICS, DCS, SCADA.

Use the 3 phase energy meter the way you prefer

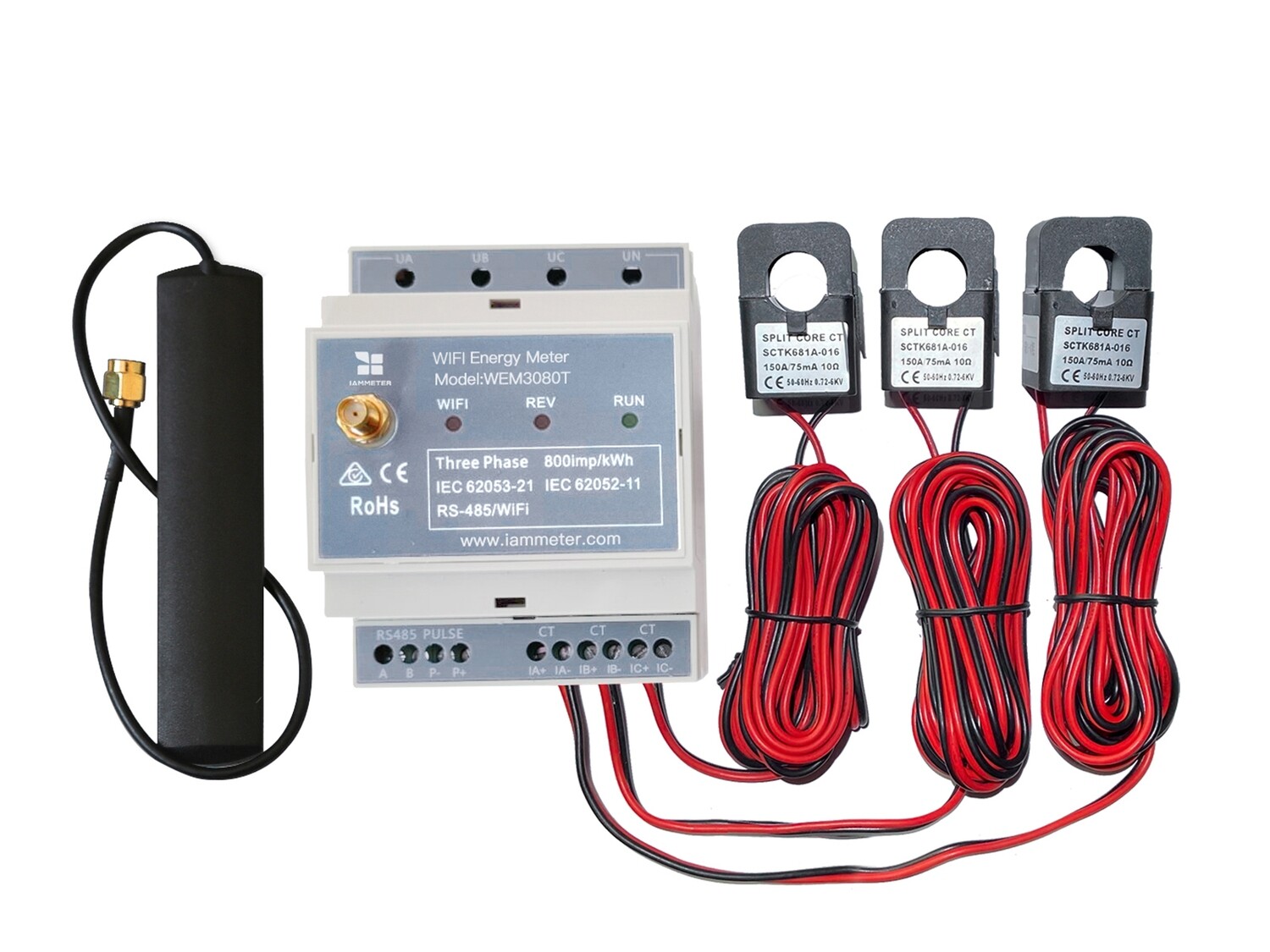

Standard Package

No.	Item	Qty	Remark
1	Wi-Fi Energy Meter	1	Wi-Fi Module Embedded
2	Split-core Current Transformer	1	150A, 250A or 400A CT optional
3	2.4G Wi-Fi Antenna	1

Applicable in the different fields

• Solar PV System Monitoring:
  • Overview of the solar PV system
  • Billing and Income Report
  • Total Savings Report
• Electricity Usage Monitor/ Energy Monitoring System:
  • Overview
  • Power consumption and bill
  • Energy usage and billing report
  • Energy consumption and bill forecast.
  • Advances energy consumption analysis
• Home Automation
  • This 3-phase energy meter Wi-Fi has support for many famous open source home automation platforms, such as Home Assistant, Openhab, NodeRED, Domoticz, IObroker etc...

Demo: System and APP Demo

Visit the demo account of IAMMETER

Video tutorials

IAMMETER Energy monitor

Reference

Monitor your solar pv system in IAMMETER cloud

Monitor your electricity usage in IAMMETER-cloud
